RCP
Precast Concrete

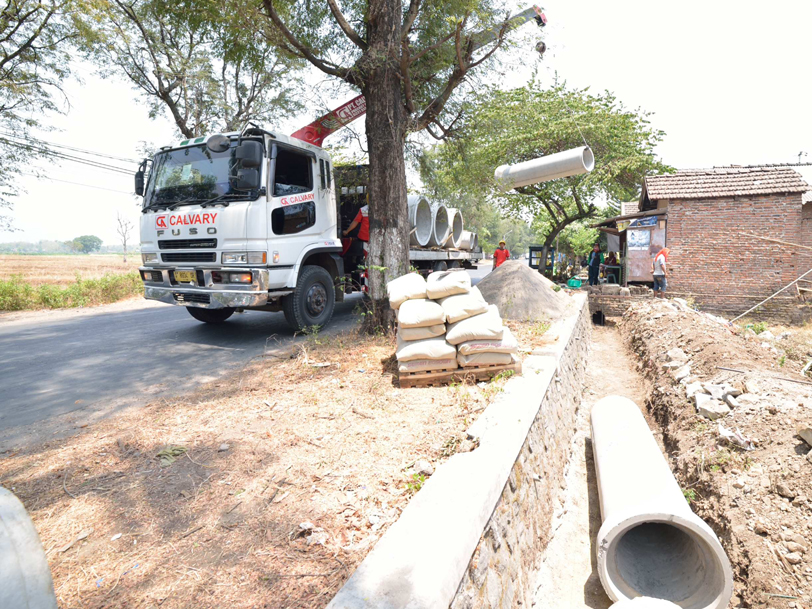

Product Description
Standard Spesification Load Test Reinforced Concrete Pipe (RCP)
| TYPE | LD 1 (Light Duty) | MD 2 (Medium Duty) | MD 3 (Medium Duty) | HD 4 (Heavy Duty) | ||||
|---|---|---|---|---|---|---|---|---|
| Crack Load(kN/m) |
Ultimate Load(kN/m) |
Crack Load(kN/m) |
Ultimate Load(kN/m) |
Crack Load(kN/m) |
Ultimate Load(kN/m) |
Crack Load(kN/m) |
Ultimate Load(kN/m) |
|
| Dia. 300 | 12.0 | 18.0 | 15.0 | 20.0 | 23.0 | 34.0 | 30.0 | 45.0 |
| Dia. 400 | 14.0 | 22.0 | 18.0 | 27.0 | 27.0 | 41.0 | 36.0 | 54.0 |
| Dia. 500 | 16.0 | 25.0 | 22.0 | 33.0 | 33.0 | 50.0 | 44.0 | 66.0 |
| Dia. 600 | 19.0 | 25.5 | 26.0 | 39.0 | 39.0 | 59.0 | 52.0 | 78.0 |
| Dia. 800 | 22.0 | 33.0 | 34.0 | 51.0 | 51.0 | 76.0 | 67.0 | 101.0 |
| Dia. 1000 | 24.0 | 37.0 | 41.0 | 61.0 | 61.0 | 91.0 | 81.0 | 121.0 |
| Dia. 1200 | 27.0 | 40.5 | 46.0 | 69.0 | 69.0 | 104.0 | 92.0 | 138.0 |
| Dia. 1500 | 54.0 | 81.0 | 81.0 | 122.0 | 108.0 | 162.0 | ||
Remarks :
- All dimensions are in milimetre(mm).
- Minimum concrete strength 500kg/cm2.
- Pipes are be designed and manufactured to withstand Load Testing requirement. Light Duty (LD) AS-1342-1973 Class 1, Medium Duty AS-4058-1992 Class 2 and 3, Heavy Duty (HD) AS-4058-1992 Class 4.
- Class 1 pipes are not recommended to withstand Live Load such as HS-20 Truck AASHTO unless approved By our Technical Service Engineer.
- Data is subject to change without notice.
