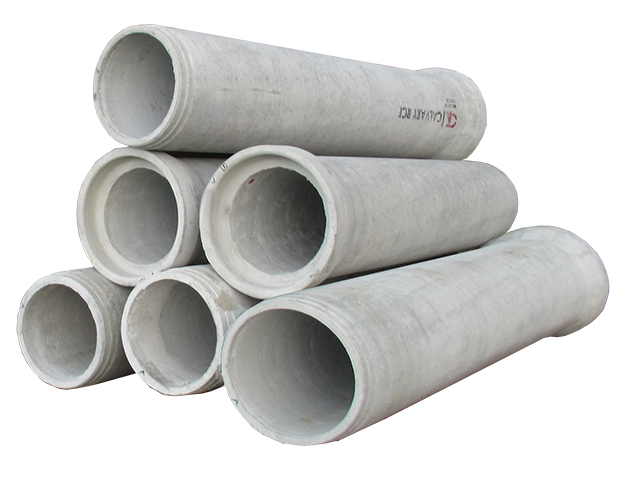

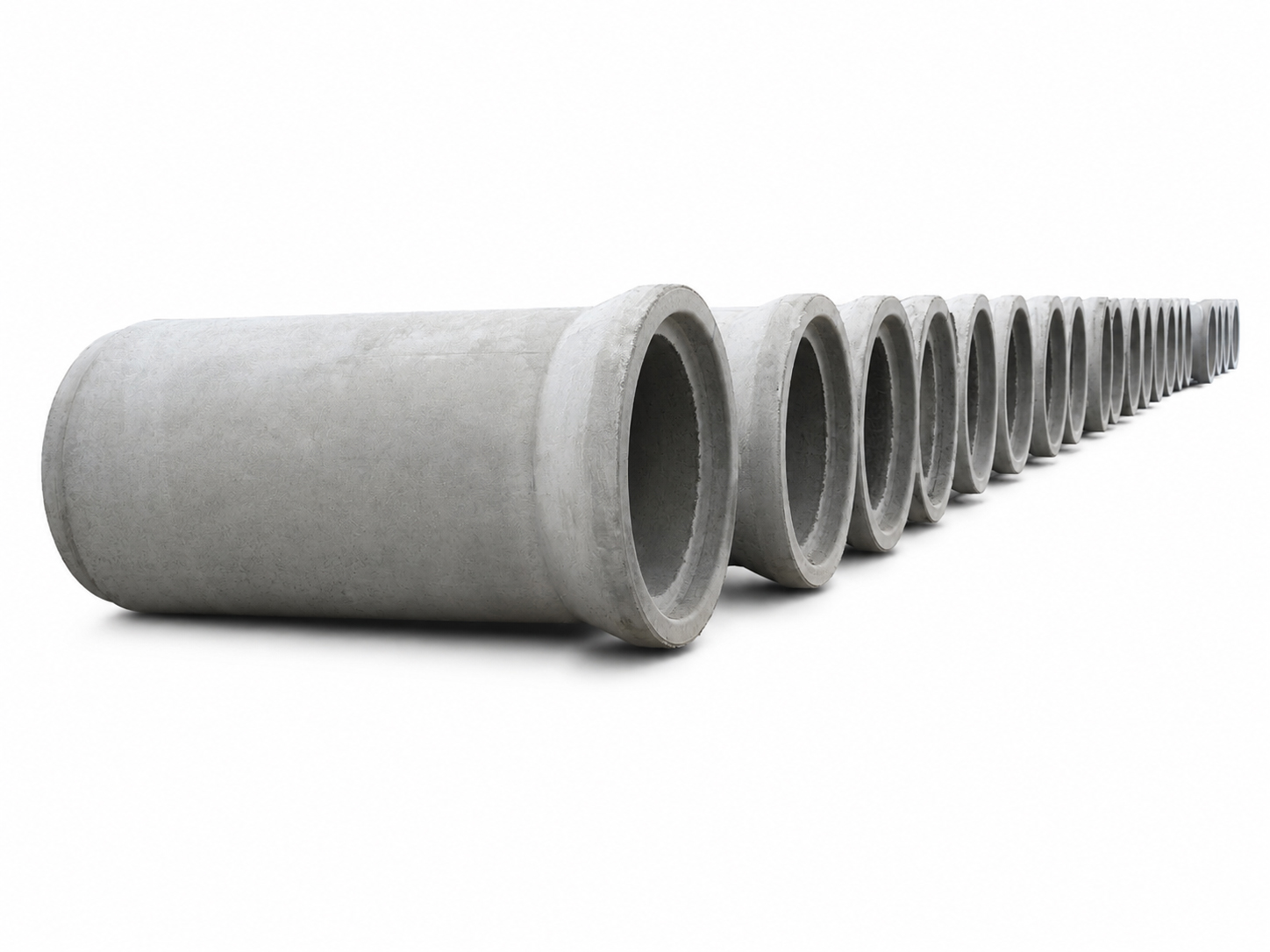

RCP

Precast Concrete

Product Description

Standard Spesification Load Test Reinforced Concrete Pipe (RCP)

TYPE LD 1 (Light Duty) MD 2 (Medium Duty) MD 3 (Medium Duty) HD 4 (Heavy Duty)
Crack
Load(kN/m)
Ultimate
Load(kN/m)
Crack
Load(kN/m)
Ultimate
Load(kN/m)
Crack
Load(kN/m)
Ultimate
Load(kN/m)
Crack
Load(kN/m)
Ultimate
Load(kN/m)
Dia. 300 12.0 18.0 15.0 20.0 23.0 34.0 30.0 45.0
Dia. 400 14.0 22.0 18.0 27.0 27.0 41.0 36.0 54.0
Dia. 500 16.0 25.0 22.0 33.0 33.0 50.0 44.0 66.0
Dia. 600 19.0 25.5 26.0 39.0 39.0 59.0 52.0 78.0
Dia. 800 22.0 33.0 34.0 51.0 51.0 76.0 67.0 101.0
Dia. 1000 24.0 37.0 41.0 61.0 61.0 91.0 81.0 121.0
Dia. 1200 27.0 40.5 46.0 69.0 69.0 104.0 92.0 138.0
Dia. 1500     54.0 81.0 81.0 122.0 108.0 162.0

Remarks :

  1. All dimensions are in milimetre(mm).
  2. Minimum concrete strength 500kg/cm2.
  3. Pipes are be designed and manufactured to withstand Load Testing requirement. Light Duty (LD) AS-1342-1973 Class 1, Medium Duty AS-4058-1992 Class 2 and 3, Heavy Duty (HD) AS-4058-1992 Class 4.
  4. Class 1 pipes are not recommended to withstand Live Load such as HS-20 Truck AASHTO unless approved By our Technical Service Engineer.
  5. Data is subject to change without notice.
