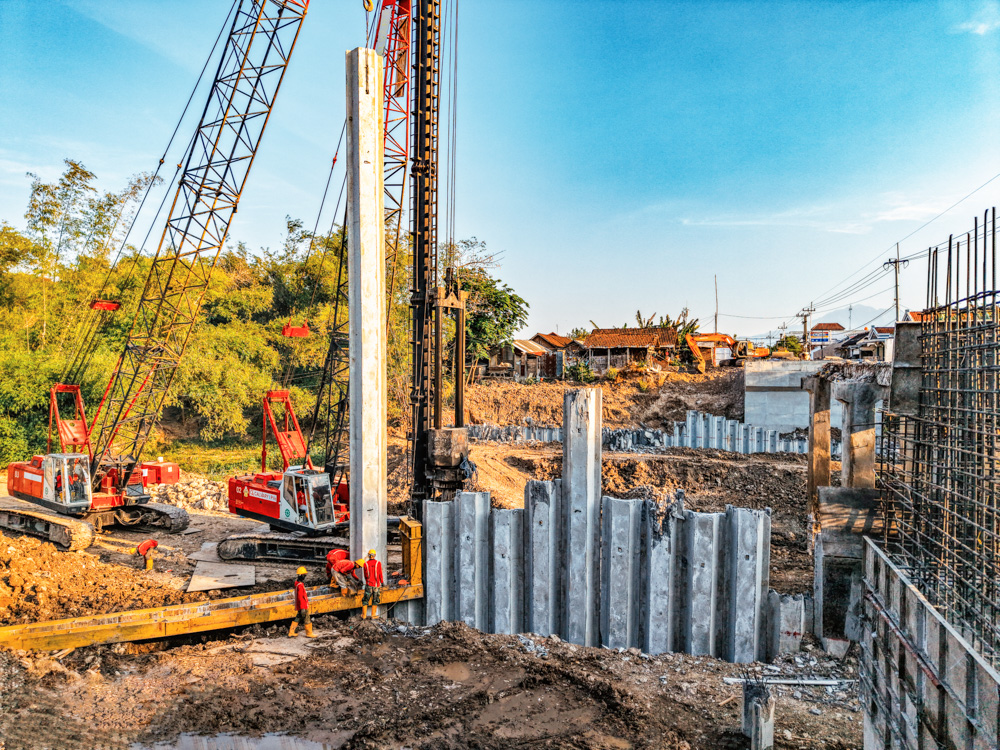

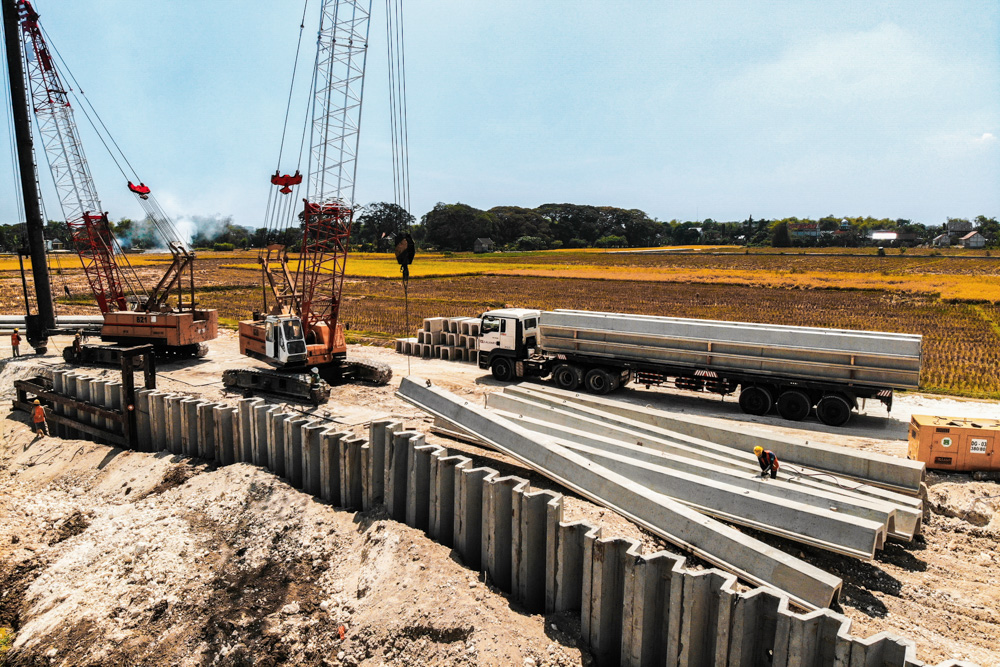

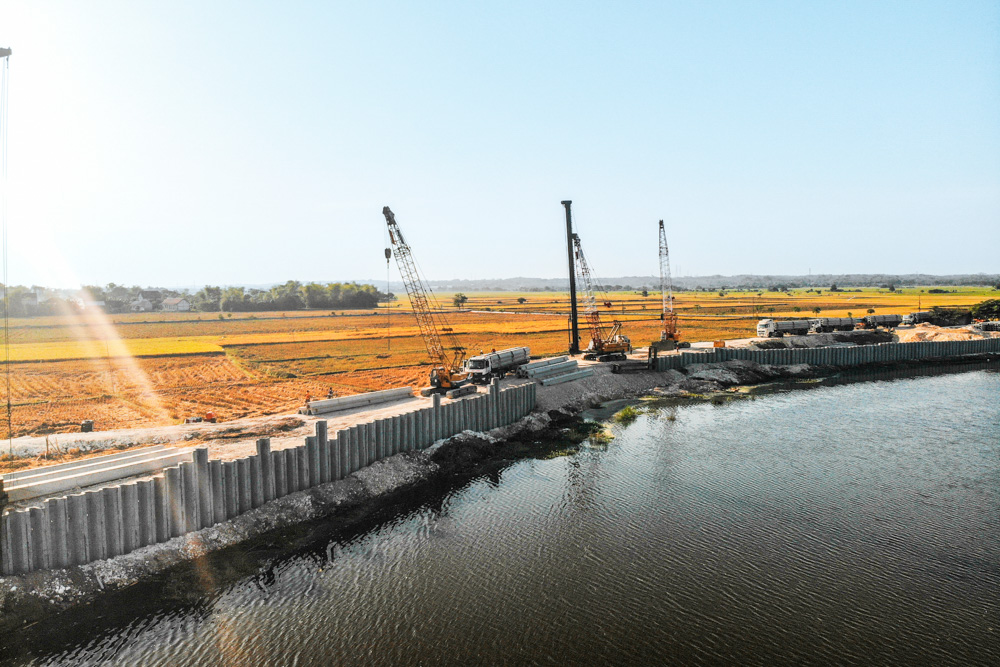

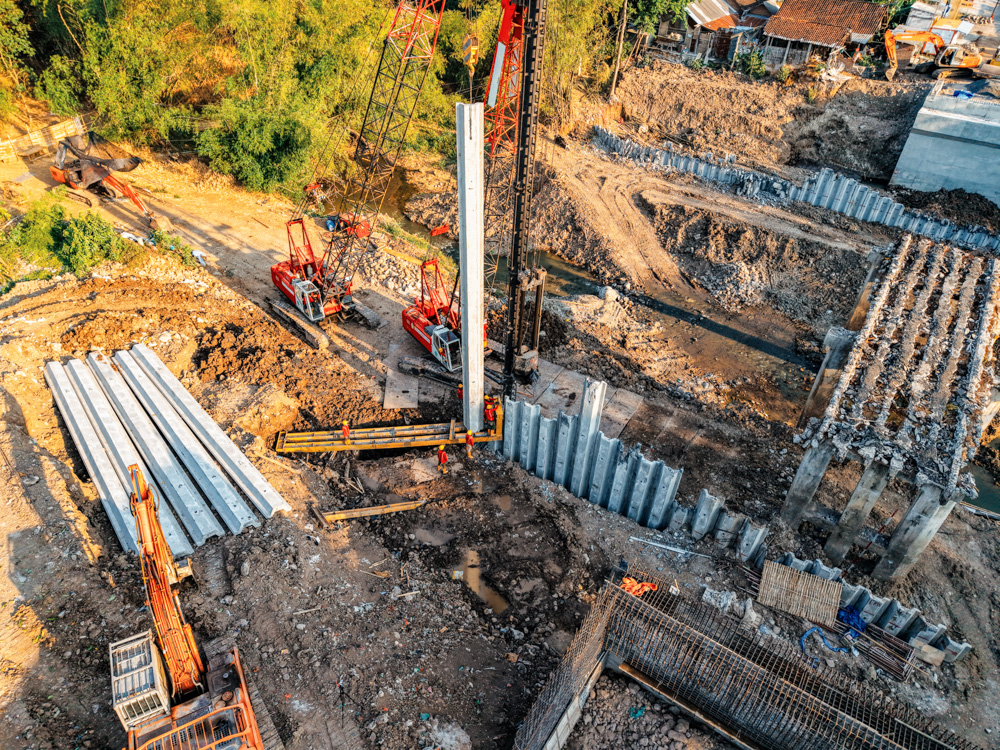

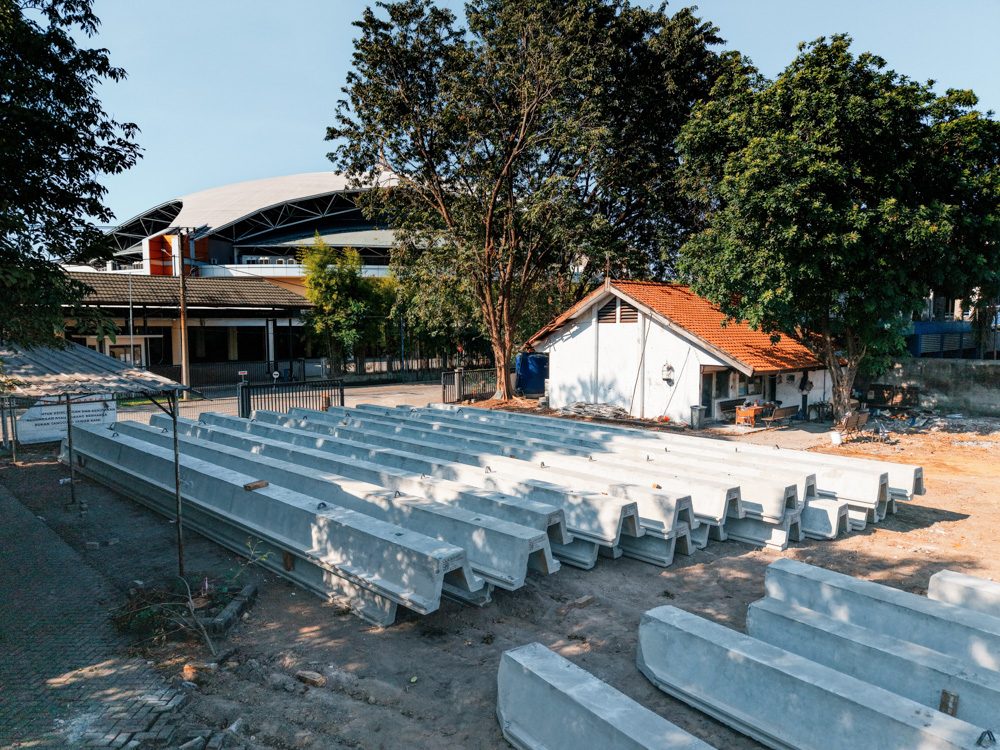

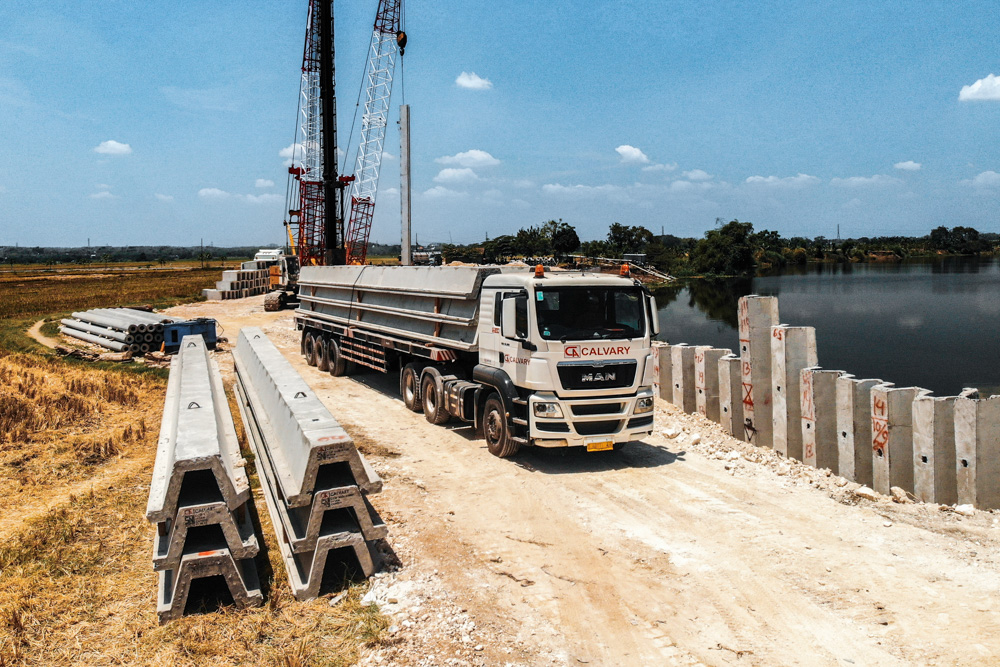

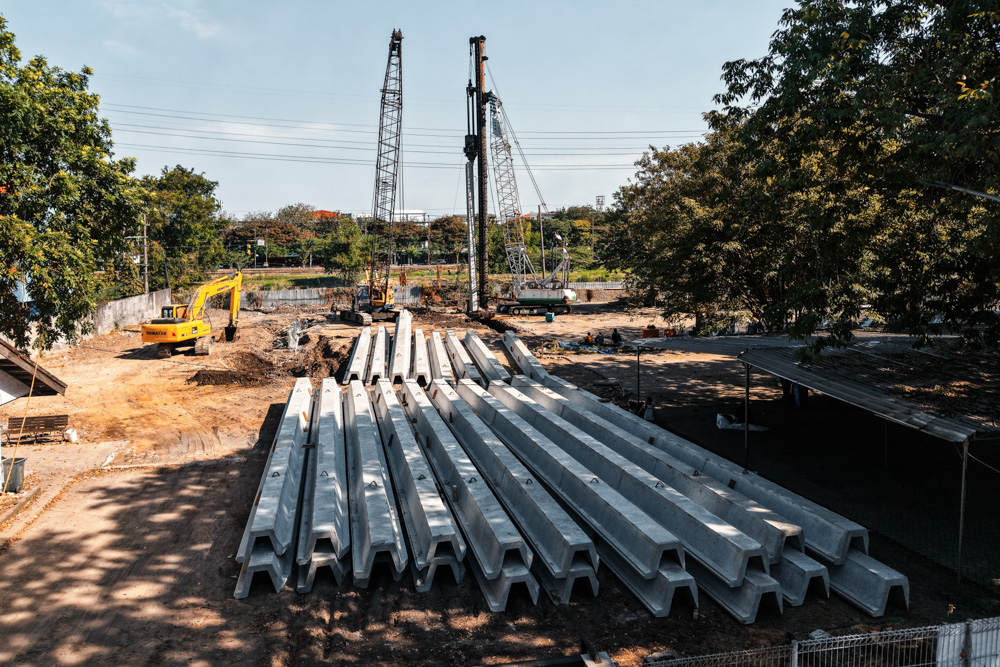

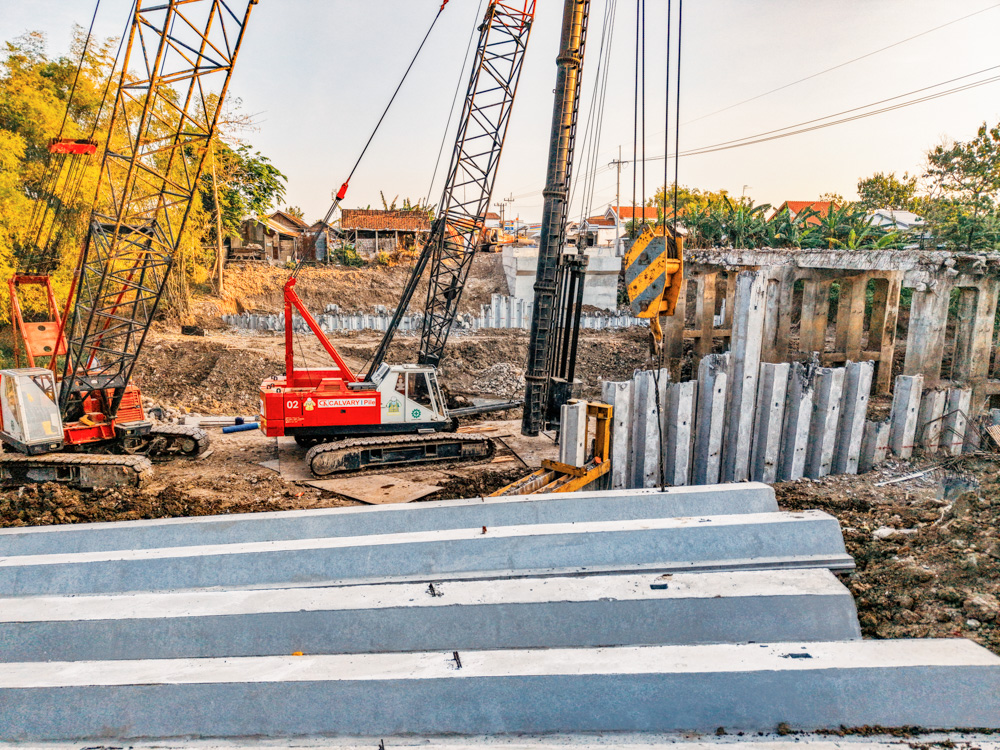

Sheet Pile

Precast Concrete

Product Description

Keterangan/remarks :

  1. Mutu Beton saat umur 28 hari adalah 500 kg/m2 untuk flat Sheet pile dan 500 kg/cm2 - 700 kg/cm2 untuk concrete corrugated Sheet Pile.
  2. Penulangan utama menggunakan stressing seven wire strand grad 270 K.
  3. Sheet pile bisa dibuat sesuai dengan permintaan desain dari customer.

Standard Specification Prestressed Pile

Size (cm)
B x H
Type Lenght (L)
m
Concrete Area
(cm2)
Weight (W)
(ton/m)
Momen
Cracking (t-m)
25 x 50
A1 6-10 1086,75 2,717 3,58
A2 6-12 4,05
A3 6-13 4,52
A4 6-12 5,09
A5 6-12 5,93
A6 6-12 6,78
35 x 50
A1 6-10 1582,25 3,955 6,34
A2 6-12 7,02
A3 6-13 7,71
A4 6-14 8,39
A5 6-13 8,50
A6 6-14 9,75
A7 6-15 10,98
A6 6-16 12,21

Remarks :

  1. Specified concrete compressive strenght at 28 days K=700 kg/cm2.
  2. Steel reinforcement : a.Deform fy=4000 Kg/cm2 | b.Plain fy=2400 Kg/cm2.
  3. Reinforcement of prestress "K.ASTM-416" Strand.
